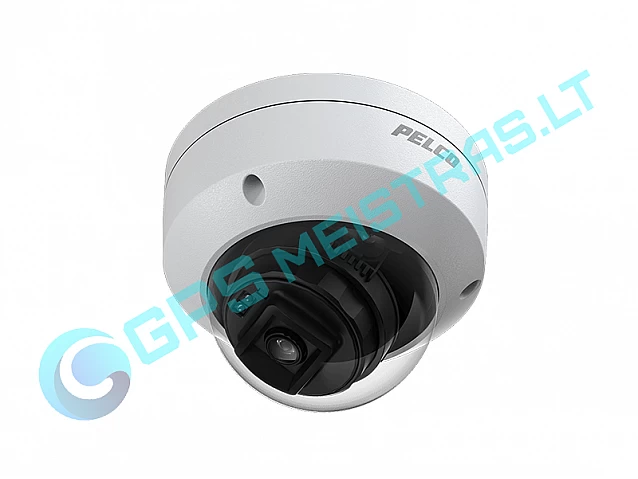

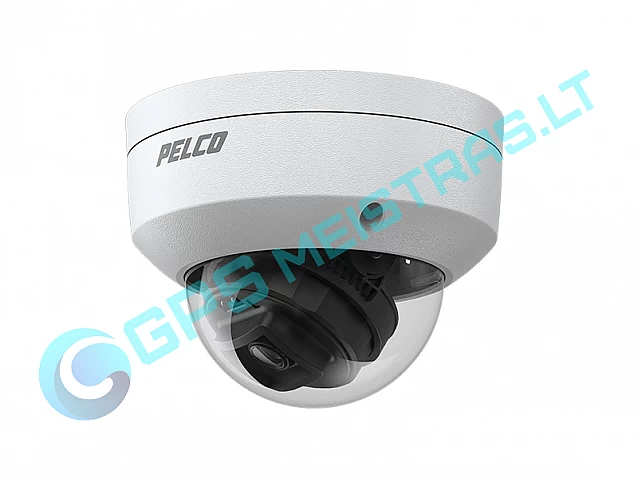

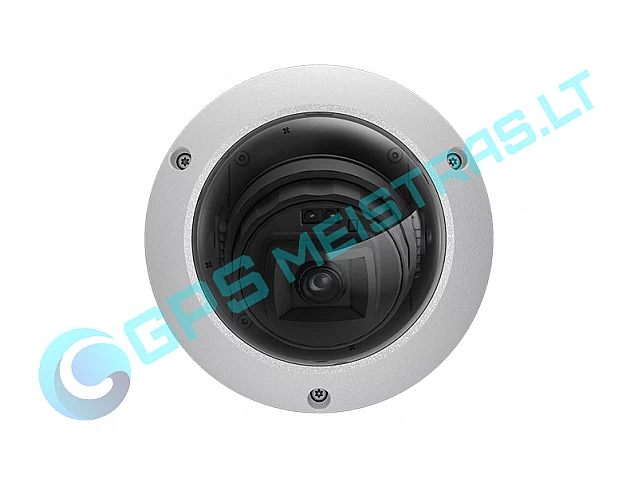

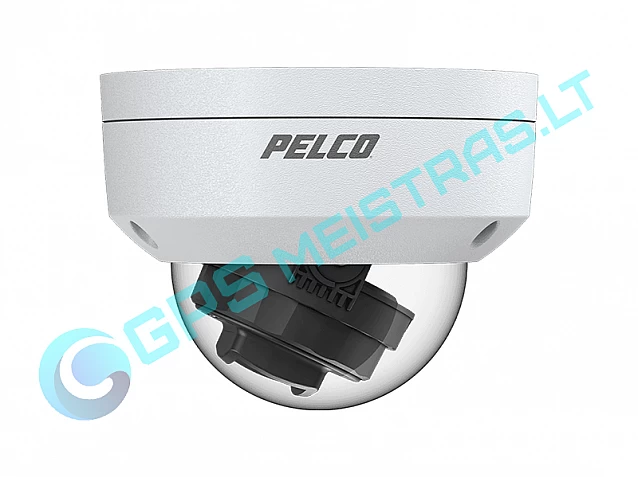

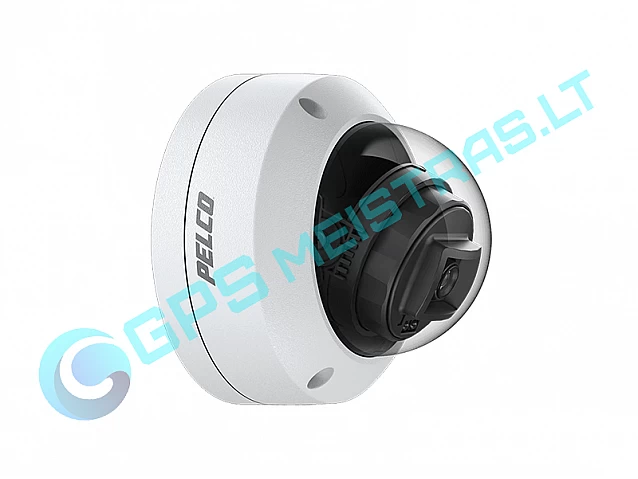

Pelco Sarix Value IP kamera Mini Dome 2MP
- Stock: Teirautis
Pranešti kai prekė bus prekyboje!
Sarix Value Mini Dome IJV serijos fiksuoto židinio nuotolio (3,6mm), 2MP raiškos IP kamera iš Pelco idealiai tinka nekrentančiam į akis vaizdo stebėjimui. Kompaktiškas dydis ir dizainas lengvai susilieja su aplinka.
Sarix Value serijos kameros pasižymi puikia vaizdo kokybe net ir esant prietemai, puikiu spalvų atkuriamumu, dėl True WDR kameros matymas yra puikus net ir sudėtingomis apšvietos sąlygomis. Tuo tarpu naktį integruotas IR pašvietimas padeda matyti vaizdą ir visiškoje tamsoje (dengiamas Ir pašvietimo plotas iki 30 m atstumu).
Kamera pritaikyta naudojimu tiek viduje, tiek lauke, atsparumas lauko sąlygoms IP66 ir antivandalinė apsauga IK10.
Gamintojas
JAV vaizdo sistemų gamintojas, užtikrinantis vakarietiškus standartus, kokybę, patikimumą.
Pelco yra pasaulinis lyderis, jau virš 63 metų kuriantis, plėtojantis ir gaminantis vaizdo stebėjimo sistemų sprendimus, įskaitant vaizdo stebėjimo kameras, vaizdo valdymo ir įrašymo sistemas, apsauginę programinę įrangą ir teikiantis susijusias paslaugas.
Pelco puikiai žinomas visame pasaulyje kaip visapusiškas vaizdo technologijų tiekėjas, užtikrinantis spartų diegimą, aukštesnį sistemos atsparumo lygį.
Pelco priklauso Motorola grupei.
Techninės specifikacijos:
| Camera Features | |
| Image Sensor | 1/2.9" Progressive CMOS (IJV223-1ERS); 1/2.7" Progressive CMOS (IJV522-1ERS) |
| Maximum Resolution | 1920x1080 (2MP) (IJV223-1ERS); 2560x1920 (5MP) (IJV522-1ERS) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm (IJV223-1ERS); f = 2.8 mm (IJV522-1ERS) |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | IJV223-1ERS 81° (Horizontal) 44° (Vertical) 95° (Diagonal) IJV522-1ERS 103° (Horizontal) 76° (Vertical) 134°(Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Wide Dynamic Range | Up to 120 dB. 100dB per IEC62676-5 |
| Day/Night | Yes with removable IR cut filter |
| IR Illumination | Built-in IR illuminators, effective up to 30 meters with Adaptive IR technology |
| Minimum Illumination | 0.07 lux Color (IJV223-1ERS); 0.2 lux Color (IJV522-1ERS) |
| Pan Range | 360° (IJV223-1ERS); 353° (IJV223-1ERS) |
| Tilt Range | 75° |
| Rotation Range | 350° |
| Pan/Tilt/Zoom Functionalities | Digital PTZ: 48x digital zoom |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (256 GB tested) and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 (IJV223-1ERS); 20 fps @ 2560x1920 (IJV522-1ERS) with WDR Pro off |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 50 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Pelco Smart Compression |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, Adaptive IR; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) It is recommended that standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard be used. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Alarm and Event | |
| Event Trigger | Camera tampering detection, audio detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification file upload via emai |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6.49 W/3.69 W (IR on/off) |
| Dimensions | ø 117.2 x 89.60 mm |
| Weight | 540 g |
| Body Construction | Powder coated aluminum (RAL 9003), lower dome bubble polycarbonate |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 |
| Web Browser | Chrome, Firefox, Edge |
| Other Players | VLC |
| Included Accessories | |
| Others | Quick Start Guide, alignment sticker, screw pack, cable gland |
Charakteristika
| Objektyvas | 3.6 mm |
| Raiška | 2MP |
| Kameros tipas | Kupolinė (dome) |
| Naktinis pašvietimas | ≤ 30 m |
| Privalumai | Palaiko MicroSD iki 256GB |
