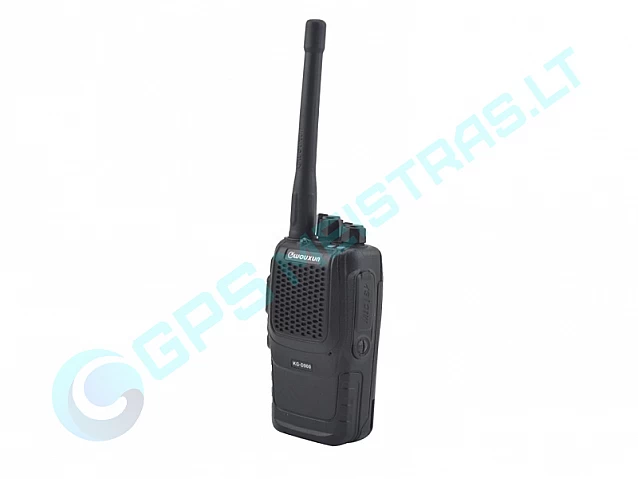

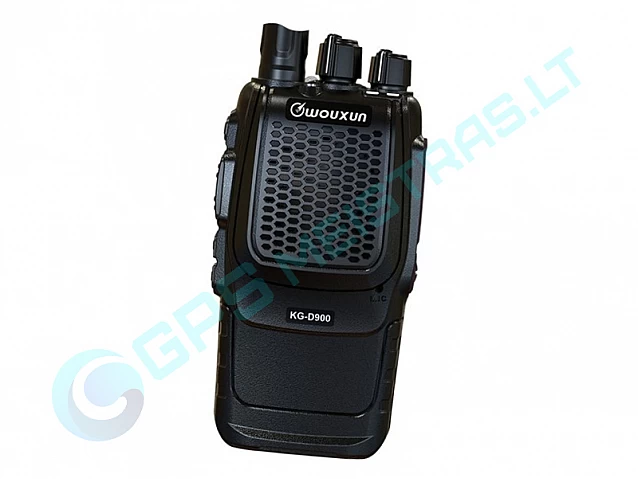

Skaitmeninė radijo stotelė WOUXUN KG-D900

Description of Features

• High/Low Output Power Switchable
• Power Save
• VOX Function
• Busy Channel Lockout Setting
• Microphone Modulation Setting
• Low Voltage Voice Prompt
• SOS Alarm
• ANI ID
• Scan Group Setting
• Scan Channel Selection
• Digital Encryption
• Lamp Function
• Multi-Function Programmalbe for Sidekeys
• One Key Switch Digital / Analogue Mode
• One Key Switch High / Low Power
• PTT ID

Product Specifications:
Integral part

• Mode: DMR
• Frequency Range: 400-470MHz
• Channel Spacing: Digital : 12.5KHz , Analogue:12.5/25KHz
• Channel number: 16
• Standard Package: 2000mAh , Lithium-ion
• Working temperature: -20℃～+50℃
• Storage temperature: -40℃～+80℃
• Working Voltage: 7.2VDC
• Working Currency: < 1300mA
• Weight: 248 g
• Size: 61 x 32 x 120 (mm)

Receiver

• Frequency Stability: ±2.5ppm
• Inter-modulation: 65dB
• Co-channel Rejection: -8dB@12.5KHz
• Spurious Inhibition: -57dBm@<1GHz , -47dBm@>1GHz
• Block: 84dB
• Adjacent Channel Selectivity: 60dB@12.5KHz
• Spurious Response: ≥70dB
• Regulated Audio Power: 1W
• Digital Sensitivity: 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)

Transmitter (Wide/Narrow)

• Transmission Power: ≤5W
• FM Noise: 40dB@12.5KHz
• Transmission Spurious: -36dBm@<1GHz , -30dBm@>1GHz
• Adjacent Power: -60dB@12.5KHz
• Bandwidth Limit: 2.5KHz@12.5KHz
• Spare Time Slot Power: -57dBm
• Modulation Characteristics: +1dB~-3dB
• Digital Transmission Bit Error Rate: ≤3%
• Output Power: ≤5W
• 4FSK Digital Modulation Method: 12.5KHz(data only):7K60FXD
• 12.5KHz(data+voice):7K60FXE

Compatible with Motorola Tier I & II and Hytera DMR radios Digital protocol ETSI TS 102 361-1, -2, -3 TDMA Digital Protocol ETSI TS 102 361-1, -2, -3
