Vaizdo kamerų testavimo įrenginys PFM900-E
Kaina galioja tik perkant el. parduotuvėje.

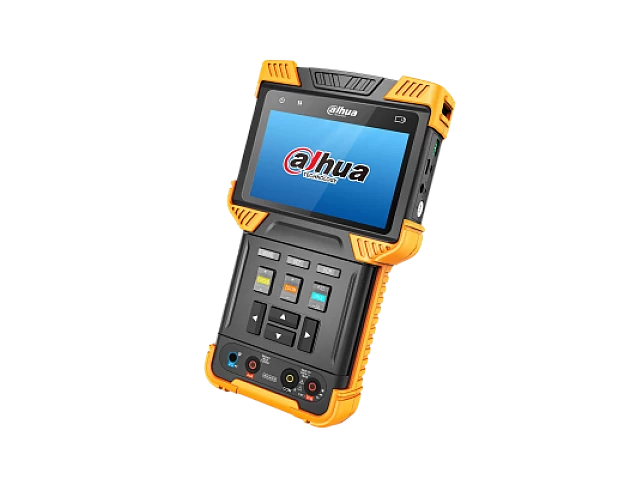

Vaizdo kamerų testavimo įrenginys PFM900-E
496.00€
Be PVM: 409.92€
- Stock: Prekė sandėlyje
Galimi pasirinkimai
Vaizdo kamerų testavimo įrenginys.
Techninės charakteristikos:
Model | DH-PFM900-E | |
Physical Port | ||
Network port | 2* 10/100M/1G RJ45(LAN/PSE, PD) | |
BNC port | 1* video in(HDCVI/TVI/AHD/CVBS), 1* video out | |
Function port | 1* RS485 output, 1* DC12V output(charge), 1* Mini USB connector, 1* 3.5mm audio in, 1* reset button, 1* power switch | |
IPC Test | ||
IP camera type | ONVIF (with PTZ control); RTSP; RTP | |
IP Camera test | Support auto-scan the whole network to discover ONVIF cameras,; Support manually adding an IP camera ; Support UDP/TCP displaying real-time video; Support 8 level digital zoom, snapshot, record video(H.264/H.265), photo view and video play back | |
Analog Video Test | ||
Format | HDCVI/ AHD/ TVI/ CVBS | |
HDCVI camera test | 1-ch BNC in, highest-resolution: Support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 25fps, 30fps | |
TVI camera test | 1-ch BNC in, highest-resolution: support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps/ 2048x1536 18fps, 25fps, 30fps/ 2560x1440 15fps, 25fps, 30fps/ 2592x1944 12fps, 20fps | |
AHD camera test | 1-ch BNC in, highest-resolution: Support 1280x720P 25fps, 30fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 15fps, 18fps, 25 fps, 30 fps | |
CVBS camera test | 1-ch BNC in, 1-ch BNC out, support PAL/NTSC format(auto adapt) | |
Camera test | Real time video, HD coaxial PTZ control, RS485 control, audio test, Support 8 level digital zoom, snapshot, record video, photo view and video play back | |
PTZ Control | ||
Protocol | Compatible with more than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, etc. | |
Baud rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps | |
Cable Tester | ||
Network cable | TDR method; Measurement resolution: 0.1m, accuracy: ≤1m | |
Tools | ||
Network tool | IP address scan, Ping test, DHCP server, etc. Ethernet link detection; Ethernet loop detection; Data link quality detection; Ethernet flow detection; | |
DMM (digital multi-meter) | AC/DC Voltage, AC/DC current, Resistance, Capacitance, Diode forward voltage, Open and short testing; | |
Data monitor | Captures and analyzes the command data from controlling device via RS485 | |
LED Flashlight | 2*35lm LED light, astigmatism | |
Audio test | 3.5mm audio port is used to test microphones or other audio devices | |
USB storage | Mini USB port can be used for USB storage devices | |
System upgrade | Tester can be upgrade online through the software upgrade | |
System Information | ||
Screen | 4.0 inch TFT 800xRGBx480(WVGA) resolution, 16.7Mcolor, backlight brightness adjustable | |
Storage capacity | Build-in 8G flash | |
Operation setup | Supporting a variety of languages, such as English, Chinese, Czech, Germany, Turkish, Hebrew, Spanish, French, Romanian, Serbian, etc. | |
Auto power off | Disable/ 5~60 minutes | |
Keyboard Tone | Enable/ Disable | |
Power | ||
Charger | PoE power injector, output 48V/15W, input AC100~230V 50~60Hz | |
Battery | 7.4V polymer lithium ion battery, 22.2Wh | |
Rechargeable | After charging 3~4 hours, normal working time 8 hours | |
PoE power out | 802.3at, 25.5W Max | |
DC12V power out | Max. DC12V 2A output | |
Other | ||
Working temperature | -10℃~+55℃(+14℉~+131℉) | |
Working humidity | 30%~90% | |
Casing | Plastics | |
Dimensions | 190mmx113mmx37mm(7.48”x4.45”x1.46”) | |
Net weight | 0.5kg(1.1lb) | |
Packaging dimensions | 275mmx170mmx116mm(10.83”x6.69”x4.57“) | |
Gross weight | 1.6kg(3.53lb) | |
Certifications | ||
Certifications | CE/FCC |
