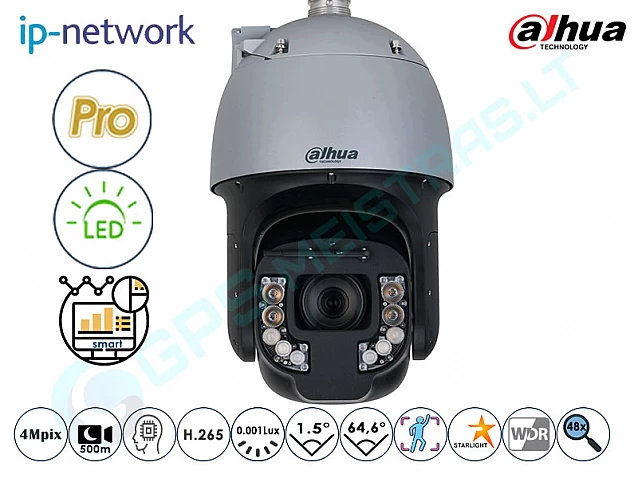

Valdoma IP kamera, 4Mpix raiška, zoom 48x, 8C448

Užsakoma prekė

Kintamo žindinio nuotolio (6,25mm - 300mm) objektyvas, 4MP valdoma IP kupolinė vaizdo kamera. Optinis priartinimas iki 48x, IR pašvietimas iki 500m.

Papildomos funkcijos:

• Perimetro apsauga: aliarmo sukėlimas pasirinktinai pagal aktualumą (žmogus ar transporto priemonė). Netikrų aliarmų filtravimas, kuriuos gali sukelti gyvūnai, judantys medžiai, šviesos (SMD Plus)
• Automatinis įvykių fiksavimas.
• Veidų aptikimas.
• Pasirinktinis žmonių, motorinių / nemotorinių transporto priemonių atvaizdų išsaugojimas.

  > 1/1.8" 4Megapixel STARVIS™ CMOS, dual sensors
  > 48× optical zoom
  > Max. 25/30 fps@4M
  > Dual light fusion
  > Auto-tracking
  > Perimeter protection
  > Face recognition
  > Metadata
  > IP67


  Camera

  Image Sensor

  1/1.8" CMOS

  Pixel

  4 MP

  Max. Resolution

  2560 (H) × 1440 (V)

  ROM

  8 GB

  RAM

  2 GB

  Electronic Shutter Speed

  1/1 s–1/30,000 s

  Scanning System

  Progressive

  Min. Illumination

  Color: 0.001 lux@F1.4 B/W: 0.0001 lux@F1.4 0 lux (IR light on)

  Illumination Distance

  500 m (1,640.42 ft)

  Illuminator On/Off Control

  Zoom Prio; Manual; Smart IR; Off

  Illuminator Number

  10 (IR light)

  Wiper

  Yes

  Lens

  Focal Length

  6.25 mm–300 mm

  Max. Aperture

  F1.4–F4.5

  Field of View

  H: 64.6°–1.5°; V: 35.6°–1.0°; D: 68.5°–2.0°

  Optical Zoom

  48×

  Focus Control

  Auto; semi-auto; manual

  Close Focus Distance

  0.5 m–2 m (1.64 ft–6.56 ft)

  DORI Distance

  Detect

  Observe

  Recognize

  Identify

  3,481.4 m (11,421.92 ft)

  1,392.6 m (4,568.90 ft)

  696.3 m (2,284.45 ft)

  348.1 m (1,142.06 ft)

  PTZ

  Pan/Tilt Range

  Pan: 0° to 360° endless Tilt: –20° to +90°

  Manual Control Speed

  Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s

  Preset Speed

  Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s

  Preset

  300

  Tour

  8 (up to 32 presets per tour)

  Pattern

  5

  Scan

  5

  Power-off Memory

  Yes

  Idle Motion

  Pattern; Preset; Scan; Tour

  PTZ Protocol

  DH-SD Pelco-P/D (auto recognition)

  Intelligence

  Video Metadata

  Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

  IVS (Perimeter Protection)

  Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

  Face Recognition

  Yes

  Auto Tracking

  Yes

  Video

  Video Compression

  H.264H; Smart H.265+; H.264; H.265; MJPEG (Sub Stream 1); Smart H.264+

  Streaming Capability

  3 streams

  Resolution

  4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

  Video Frame Rate

  Main stream: 4M/1080p/960p/720p (1–50/60 fps) Sub stream 1: D1/VGA/CIF (1-25/30 fps) Sub stream 2: 1080p/960p/720p (1-25/30 fps)

  Bit Rate Control

  CBR; VBR

  Day/Night

  Auto (ICR); Color; B/W

  BLC

  Yes

  WDR

  120 dB

  HLC

  Yes

  White Balance

  Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

  Gain Control

  Auto; manual

  Noise Reduction

  2D NR; 3D NR

  Motion Detection

  Yes

  Region of Interest (RoI)

  Yes

  Defog

  Optical

  Digital Zoom

  16×

  Image Rotation

  180°

  Privacy Masking

  Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available

  S/N Ratio

  ≥55 dB

  Audio

  Audio Compression

  PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

  Network

  Network Port

  RJ-45 (10/100 Base-T)

  Network Protocol

  FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP

  Interoperability

  CGI; SDK; ONVIF (Profile S&G&T)

  Streaming Method

  Unicast; Multicast

  User/Host

  20 (total bandwidth: 64 M)

  Storage

  FTP; Micro SD card (512 GB)

  Browser

  IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions

  Mobile Client

  iOS; Android

  Port

  Analog Output

  1 channel (CVBS output, BNC)

  RS-485

  1 (baud rate: 1,200 bps–115,200 bps)

  Audio Input

  1 channel (LINE IN, bare wire)

  Audio Output

  1 channel (LINE OUT, bare wire)

  Alarm I/O

  7/2

  Audio I/O

  1/1

  Alarm Linkage

  Capture; preset; tour; pattern; recordings; alarm digital input; send email

  Alarm Event

  Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection

  Power

  Power Supply

  36 VDC, 2.23 A (± 25%), Hi-PoE

  Power Consumption

  Basic: 18 W Max.: 33 W (illuminator + PTZ)

  Environment

  Operating Temperature

  –40 °C to +70 °C (–40 °F to +158 °F)

  Operating Humidity

  ≤95%

  Protection

  IP67; TVS 8000 V lightning proof; surge protection; voltage transient protection

  Structure

  Product Dimensions

  442 mm × Φ262 mm (17.40" × Φ10.31")

  Net Weight

  10.3 kg (22.71 lb)

  Gross Weight

  12.5 kg (27.56 lb)
