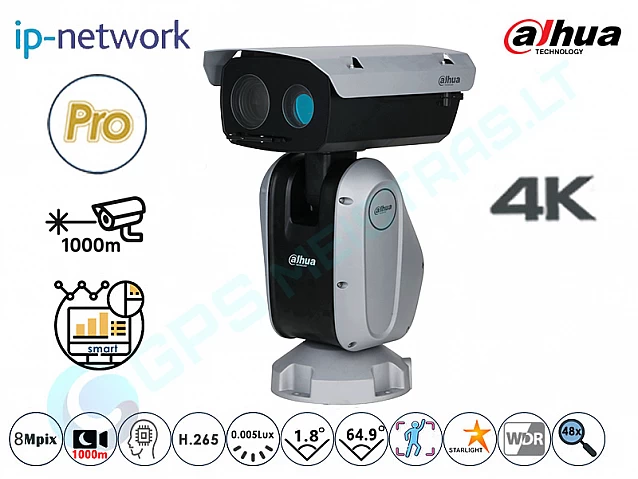

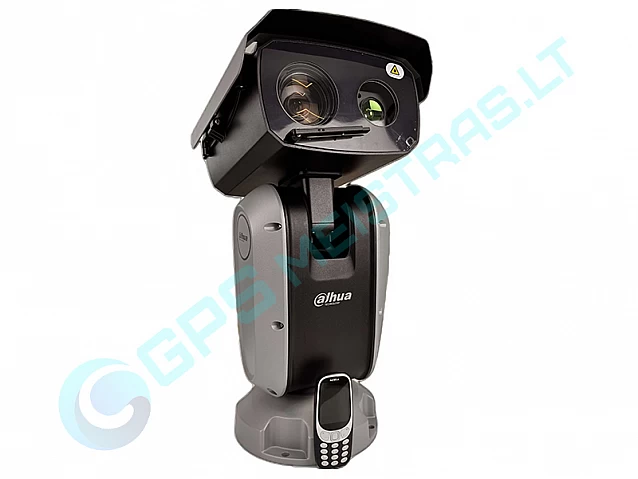

Valdoma IP kamera, 8Mpix raiška, zoom 48x, 85848

Camera

Image Sensor

1/1.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (laser on)

Illumination Distance

1,000 m (3,280.84 ft)

Illuminator On/Off Control

Zoom Prio; Manual; Off

Illuminator Number

1 (laser)

Wiper

Yes

Lens

Focal Length

6.25 mm–300 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 64.9°–1.8°; V: 38°–1.3°; D: 71.3°–1.9°

Optical Zoom

48×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

6,000 m (19,685.04 ft)

2,381 m (7,811.68 ft)

1,200 m (3,937.01 ft)

600 m (1,968.50 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –45° to +90°

Manual Control Speed

Pan: 0.1°/s–160°/s
Tilt: 0.1°/s–60°/s

Preset Speed

Pan: 160°/s; Tilt: 60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD

Pelco-P/D (auto recogniton)

Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification.

Face Recognition

Yes

Video

Video Compression

H.265; H.264M; H.264H; MJPEG; Smart H.265; Smart H.264

Streaming Capability

3 streams

Resolution

8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/960p/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3328–16384 kbps
H.265: 1280–9984 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

Yes

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Optical

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP

Interoperability

ONVIF (Profle S&G&T); GB/T28181; CGI

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 7 and later versions
Chrome 45 and later versions
Firefox 52ESR and earlier versions
Safari

Management Software

Smart PSS; DSS; IVSS

Mobile Client

iOS; Android

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–115200 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Two-way Audio

Yes

Alarm Input

7 (on-off value input: 0–5 VDC)

Alarm Output

2

Alarm Linkage

Capture; preset; tour; pattern; recordings on SD card; alarm digital input; client E-map; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection

Optical Fiber

100 M single fiber FC

Specifications: 1310 nm TX/1550 nm RX

Transmission distance: 20 km (12.43 mi)

Power

Power Supply

36 VDC, 5 A (± 25%)

Power Consumption

Basic: 22 W
Max.: 63 W (illuminator + wiper + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to 158 °F)

Operating Humidity

≤95%

Protection

IP67; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Casing

ADC12

Product Dimensions

344.6 mm × 252.2 mm × 499.8 mm (13.57" × 9.93" × 19.68") (L × W × H)

Net Weight

15.4 kg (33.95 lb)

Gross Weight

23.7 kg (52.25 lb)
