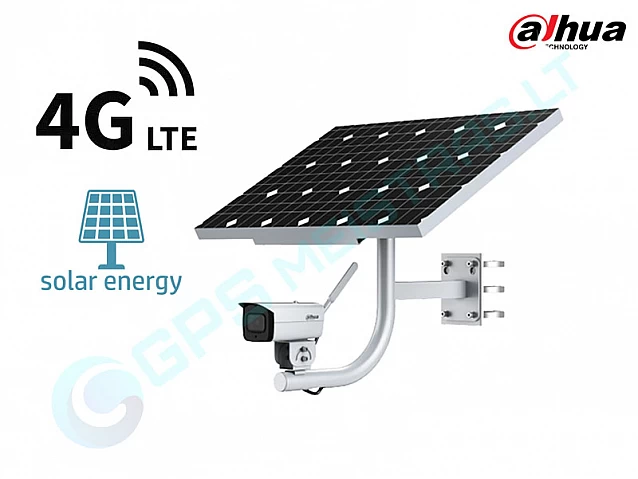

Beviele stebejimo sistema LTE 4G

Solar Panel

Type

Monocrystalline silicon

Max. Power

60 W

Output Voltage

18.8 VDC

Solar Cell Efficiency

21%

Max. Mechanical Load

5400 Pa

Port

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

General

Main Body Material

Q235

IP Rating

IP65

Installation

Supports wall mount or pole mount with PFA150 bracket

Adjustable Angle

Solar panel: H: 360°, V: 10°/20°/30°/40°/50°
Camera: H: 360°, V: 0°–75°

Product Dimensions

710.0 mm × 603 mm × 666 mm (27.95" × 23.74" × 26.22")

Packaging Dimensions

785 mm × 565 mm × 200 mm (30.91" × 22.24" × 7.87")

Packaging Method

1 pc in each carton

Net Weight

11.9 kg (26.24 lb)

Gross Weight

12.3 kg (27.12 lb)

Environment

Operating Altitude

< 3000 m (9842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

< 95% (RH)

Certifications

Certifications

CE: EN IEC61000-6-4, EN IEC61000-6-2
FCC: 47 CFR Part 15,Subpart B
UKCA: EN IEC61000-6-4, EN IEC61000-6-2

2MP IR Fixed focal Bullet WizSense 4G Network Camera

Model

DH-IPC-HFW3241DF-AS-4G

Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m (273 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: –60°–0°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6
6 mm: F1.6

Field of View

2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
3.6 mm: Horizontal 88° × Vertical 44° × Diagonal 105°
6 mm: Horizontal 54° × Vertical 29° × Diagonal 63°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.5 ft)
3.6 mm: 1.3 m (4.25 ft)
6 mm: 2.8 m (9.15 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m

(144 ft)

17.5 m
(57.4 ft)

8.8 m
(28.8 ft)

4.4 m
(14.4 ft)

3.6 mm

58.9 m
(193 ft)

23.6 m
(77.4 ft)

11.8 m
(38.4 ft)

5.9 m
(19.4 ft)

6 mm

88.3 m
(289.6 ft)

35.3 m
(115.8 ft)

17.7 m
(58 ft)

8.8 m
(28.8 ft)

Professional, Intelligent

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

SMD 3.0

Less false alarm, longer detection distance

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI Coding AI H.265; AI H.264

Video Frame Rate

Main stream: 1920 × 1080@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream:1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 512 kbps -8192 kbps
H.265: 256 kbps -7424 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Built-in MIC

Yes

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

4G

4G_LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
3G_WCDMA: B1/B5/B8
2G_GSM: B3/B5/B8

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: 5 mA 3 V–5 VDC

Alarm Output

2 channels out: 300 mA 12 VDC

Power

Power Supply

12 VDC

Power Consumption

Basic: 3.3 W (12 VDC);
Max. (WDR+H.265+IR+4G): 5.9 W (12 VDC)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–30 °C to +70 °C (–22 °F to +163 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Dimensions

227.6 mm × 204.2 mm × 87.2 mm (8.96" × 8.04" × 3.43")

Net Weight

945 g (2.08 lb)

Gross Weight

1440 g (3.17 lb)

Pole Mount Bracket

Model

DH-PFA150

General

Material

SECC & SUS304

Dimension (W×H×D)

130.4 mm x 170 mm x 45 mm (5.13" x 6.69" x 1.77")

Weight

1.1 kg (2.43 lb)

Load Bearing

10 kg (22.05 lb)
