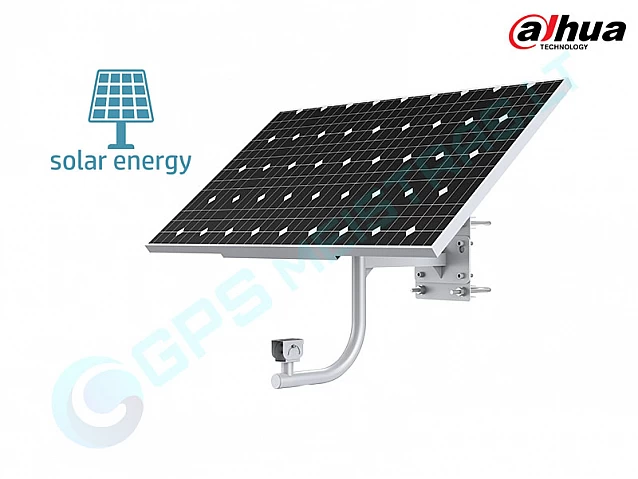

Saulės energijos sistema IP kameroms 100W

Solar Panel

Type

Monocrystalline silicon

Max. Power

100 W

Output Voltage

18.8 VDC

Solar Cell Efficiency

21%

Max. Mechanical Load

5400 Pa

Controller

Type

MPPT

Operating Voltage

12 VDC

Rated Charging Current

10 A

Rated discharge current

10 A

MPPT Tracking Efficiency

≥ 99%

Communication Mode

RS485

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Rated Charging Power

130 W

Over-discharge Protection Voltage

11.1 VDC

Others

Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load.

Port

Power Output

Φ5.5 mm × Φ2.1 mm × 12 mm

(Φ0.22" × Φ0.08" × 0.47")

RS–485

Red: RS485-A
Black: RS485-B

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

General

Main Body Material

Q235

IP Rating

IP65

Installation

Pole mount, Φ80mm~Φ150mm

Adjustable Angle

Solar panel: H: 360°, V: 20°/40°/60°

Camera: H: 360°, V: 0°–75°

Product Dimensions

815mm x 846.8mm x 893.3mm

(32.1” x 33.3” x 35.2”)

Packaging Dimensions

880 mm × 765 mm × 275 mm (34.65" × 30.12" × 10.83")

Packaging Method

1 pc in each carton

Net Weight

20.1 kg (44.31 lb)

Gross Weight

23.8 kg (52.47 lb)

Environment

Operating Altitude

< 3000 m (9842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Humidity

< 95% (RH)
