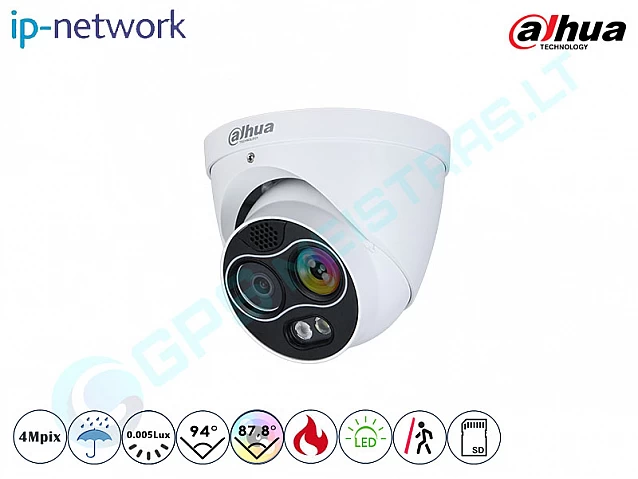

Termovizinė kamera, kupolinė, 4MP, 2mm, 1241

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30,000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux

0 lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Focal Length

2 mm

4 mm

8 mm

Aperture

F2.2

F1.6

F2.0

Field of View

H: 94°

V: 72°

D: 116°

H: 71.2°

V: 52°

D: 92.6°

H: 33.4°

V: 25°

D: 41.9°

Focus Control

Fixed

Close Focus Distance

0.3 m (0.98 ft)

1.0 m (3.28 ft)

2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Call Detection

Video and Audio

Video Compression

H.265; H.264M; H.264H; H.264B; MJEPG

Resolution

Thermal:

Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default)

Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default)

Visual:

Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default)

Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)

Frame Rate

Thermal

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Visual

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE 8 and later

Google: 42 and earlier

Firefox: 42 and earlier

User/Host

10

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Port

Network

One 10/100 M Ethernet port (RJ-45)

Audio Input

1

Audio Output

1

Alarm Input

1

Alarm Output

1

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (± 20%)

PoE

Power Consumption

Basic: < 6.5 W (LED off)

Max: < 13 W (LED on, heater on)

Environment

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Storage Temperature

–30 °C to +70 °C (–22 °F to ﹢158 °F)

Operating Humidity

≤ 95%

Protection

P67; anti-surge 6 kV; anti-elctrostatic 6 kV (touched by objects); anti-elctrostatic 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

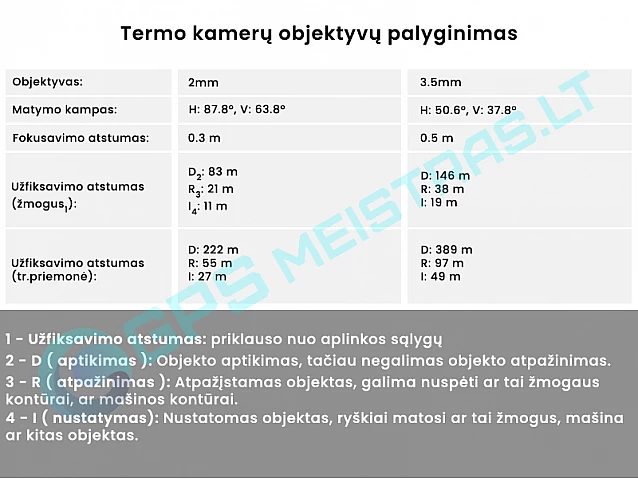

IVS Range

Focal Length

2 mm

3.5 mm

7 mm

Human (1.8 m × 0.5 m)

14 m

24.5 m

49 m

Vehicle (1.4 m × 4.0 m)

42 m

72.5 m

146.5 m

Note:

The table displays the optimal distance obtained from testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

Dimensions (mm [inch])

Fire Detection Distance

Focal Length

2 mm

3.5 mm

7 mm

Recommended Distance

8.3 m

14.6 m

29.2 m

Max. Distance

12 m

22 m

40 m

Note:

The table displays the measured distances obtained from using the target size 0.2 m x 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
