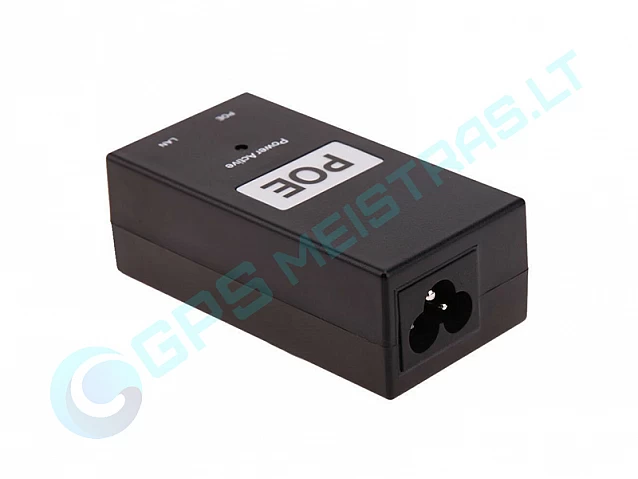

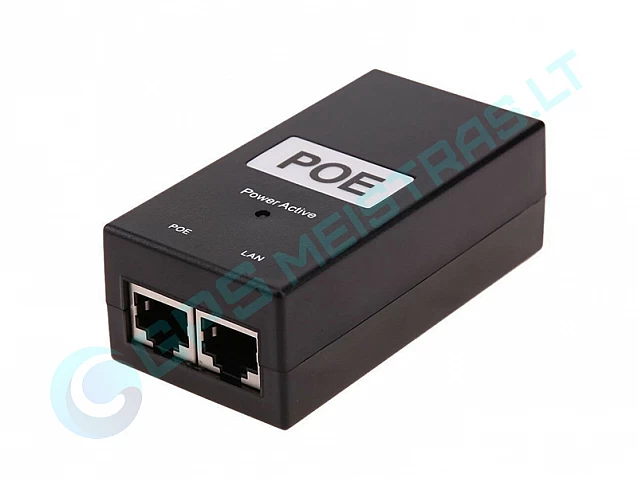

PoE 1 kanalo PoE maitinimo šaltinis

Produkto savybės:

48V, 24W, 0.5A POE Adapter Injector (POE-48V-24W), 10/100 Mbps, 802.3af/at POE Standart and passive 48V POE supported. European type power cable included

Produkto specifikacijos:

Electrical specifications

Input voltage:    100 – 240 VAC, 50/60 Hz
Output voltage:    48 VDC +/- 5%
Output power:      24 W
Data rate:      1000 Mbps
Protection:    Short circuit, overvoltage, overcurrent


Physical specifications

Input jack:    IEC320 C6
Output jack:    RJ-45
Data jack:    RJ-45
Dimensions:    90 x 50 x 35 mm
Weight:    120 g
Operating temperature:    -10 to +50 C
UTP/FTP cable length:        100 m total (from switch to the device)


Package Includes:

1 x 48V, 24W, 0.5A Gigabit POE Adapter Injector

1x EU Type Power cable
