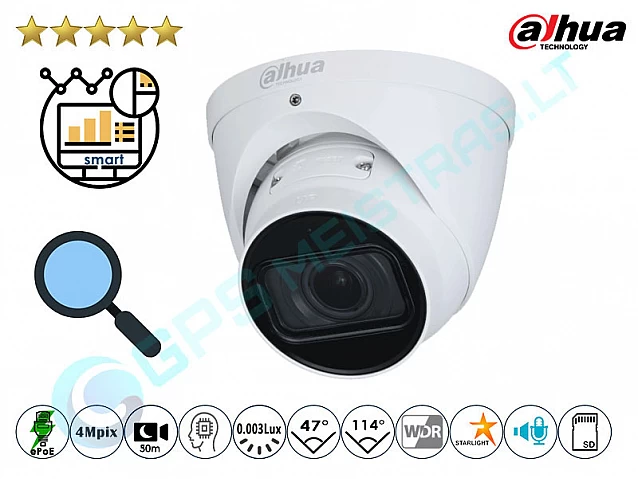

Kupolinė IP kamera 4Mpix raiška, zoom 4x, Pro AI, 5442DZ

Camera

Image Sensor

1/1.8”4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

1GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003Lux@F1.8

S/N Ratio

>56 dB

Illumination Distance

40 m (131.2 ft) (IR LED)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm-12 mm

Max. Aperture

F1.8

Field of View

Horizontal: 114°–47°
Vertical: 62°–26°
Diagonal: 136°–54°

Iris Type

Auto

Close Focus Distance

1.2 m (3.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

58 m (190.3 ft)

23 m (75.5 ft)

12 m (39.4 ft)

6 m (19.7 ft)

T

131 m (429.8 ft)

52 m (170.6 ft)

26 m (85.3 ft)

13 m (42.7 ft)

Smart Event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

People Counting

Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/weekly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H265+/H264+

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1 (1 fps–50/60 fps)
Third stream: 1080p (1 fps–25/30 fps)

Stream Capability

3 streams

Resolution

2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

Scene Self-adaptation

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; AAC; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; audio detection; people counting; face detection; voltage detection; people counting in area; stay alarm; people No. exception detection, queue management

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC (±30%)/PoE (802.3af)

Power Consumption

＜7.5W

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)/Less than 95% RH

Strorage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Inner core: Metal
Cover: Metal
Decoration ring: Plastic Decoration ring

Dimensions

Φ122.0 mm × 108.3 mm (Φ4.8" × 4.3")

Net Weight

740 g (1.6 lb)

Gross Weight

910 g (2.0 lb)
