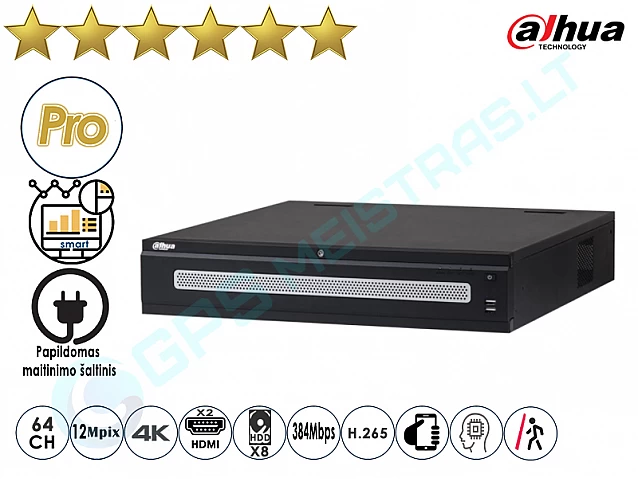

Dahua IP NVR įrašymo įrenginys 608R 64 4K Dvigubas maitinimas

- Stock: Prekė sandėlyje
Profesionalus 64 kanalų tinklinis vaizdo įrašymo įrenginys (NVR) su 2 maitinimo šaltiniais (1 atsarginis). Vaizdo stebėjimas internetu ir mobiliuoju telefonu per aplikaciją. Naujos kartos įrašymo įrenginiai geba ne tik kaupti ir atvaizduoti vaizdo medžiagą, bet taip pat palaiko išmaniąsias funkcijas bei vaizdo analitiką, tai pakelia CCTV apsaugos sprendimus į aukštesnį lygį. Papildomos tinklinio įrašymo įrenginio įvestys ir sąsajos leidžia vaizdo stebėjimo sistemą sujungti su kitomis valdymo, apsaugos, bei automatikos sistemomis.
- 64 kanalų Ultra 4K H.265 tinklinis vaizdo įrašymo įrenginys;
- Objekto sekimas ir išmanios funkcijos;
- Palaiko RAID 0/1/5/6/10;
- Iki 12MP rezoliucijos peržiūrai ir įrašui;
- Iki 384Mbps įeinantis srautas;
- Intel procesorius;
- Palaiko 8 SATA HDD, iki 8TB kiekvienas;
- 4 USB (2 USB 2.0, 2 USB 3.0);
- Su papildomu maitinimo šaltiniu.
System
Main Processor
Industrial embedded micro-processor
Operating System
Embedded Linux
Operation Interface
Web/local GUI
Perimeter Protection by Camera
Performance
24 channels
AI Search
Search pictures by channel, time, event type
Face Recognition by Camera
Performance
24 channels
Face Attributes
6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search
Search pictures by channel, time and face attributes
SMD Plus by Camera
Performance
32 channels
AI Search
Search by target classification (Human, Vehicle)
Video Metadata by Camera
Performance
12 channels
Human Body
Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella
Vehicle
Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region
Non-motor Vehicle
Type, color, number of passengers, helmet
AI Search
Support search target video by metadata
ANPR by Camera
Performance
8 channels
Stereo Analysis by Camera
Performance
32 channels
AI Search
Search by target classification (Fall Detection, People Approach Detection, People No. Exception Detection, People Staying Detection, Violence Detection)
Video
Access Channel
64/128
Network Bandwidth
384 Mbps for access, 384 Mbps for storage and 384 Mbps for forwarding
Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/
1080p/960p/720p/D1/CIF/QCIF
Video Output
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1/HDMI2: 3840 × 2160@30 fps, 3840 × 2160@25fps, 1920 × 1080, 1280 × 1024, 1280 × 720
1 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output. Support 4K display for both HDMI1 and HDMI2Multi-screen Display
1st Screen: 1/4/8/9/16/25/36/64
2nd Screen: 1/4/8/9/16
Third Party Camera Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more
Compression
Video
Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG
Audio
AAC/MP2/G726/G729/G722/G723/G711A/G711U/PCM
Network
Network Protocol
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
Mobile Phone Access
iOS, Android
Interoperability
ONVIF (profile T/S/G), CGI, SDK
Browser
Chrome, IE9 or later, Firefox
Record Playback
Multi-channel Playback
1/4/9/16
Record Mode
Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent, POS)
Storage Method
Local HDD and network
Backup
Hard drive, USB device, eSATA device
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/offStorage
Disk Group
Support
Raid Support
RAID 0/1/5/6/10
Alarm
General Alarm
Motion detection, privacy masking, video loss, local alarm, PIR alarm, IPC alarm
Anomaly Alarm
Camera offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Intelligent Alarm
Perimeter protection, face detection, face recognition, SMD, video metadata
(human, motor-vehicle, non-motor vehicle), ANPR, people counting, stereo analysis, crowd distribution, heatmap, video quality diagnosisAlarm Linkage
Record, snapshot, IPC external alarm output, buzzer, log, preset, email
External Port
Audio Input
1 channel, RCA connector
Audio Output
1 channel, RCA connector
HDD
8 SATA III ports, up to 10 TB for a single HDD
Alarm Input
16 channels
Alarm Output
8 channels
eSATA
1 eSATA
RS-232
1 channel, used to debug and pass through serial data
RS-485
1 channel, used to control PTZ, and it supports multiple protocols
USB
2 front USB 2.0 ports, 2 rear USB 3.0 ports
HDMI
2
VGA
1
Network
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
General Parameter
Power Supply
Redundant, AC100V–240V, 50–60 Hz
Power Consumption
< 20 W (Without HDD)
Net Weight
9.7 kg (21.4 lb) (Without HDD)
Gross Weight
12.2 kg (26.9 lb) (Without HDD)
Product Dimensions
444 mm × 476 mm × 95 mm (W × L × H)
17.48 inch × 18.74 inch × 3.74 inch (W × L × H)Package Dimensions
571 mm × 618 mm × 219 mm (W × L × H)
22.48 inch × 24.33 inch × 8.62 inch (W × L × H)Operating Conditions
–10°C to +55°C (+14°F to +131°F), +35°C (+95°F) when raid enabled
Storage Conditions
0°C to +40°C (+32°F to +104°F)
Operating Humidity
10%–93% (RH)
Storage Humidity
30%–85% (RH)
Operating Altitude
3000 m (9843 ft)
Certifications
CE: EN55022, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL 60950-1 and CAN/CSA C22.2 No.60950-1
NVR įrašymo įrenginys | |
Kanalų skaičius | 64 |
Integruotas maitinimas per UTP (PoE) | Nėra |
Palaikoma kamerų raiška | Iki 12Mpix |
Įrašymo įrenginio klasė | 6 klasė |
Vaizdo išvestis vaizduokliui | HDMI 2 , VGA 1 |
Nuotolinis prisijungimas | Telefono programėlė, WEB aplinka, Kompiuterio programa |
Nuotolinės tel programėlės aplinka | iOS, Android |
Kietų diskų HDD kiekis | 8 |
Maksimalus TB kiekis HDD | Iki 10TB |
RAID hardų dubliavimas | RAID 0/1/5/6/10 |
Duomenų pralaidumas | 384Mbps |
Vaizdo kompresavimas | Smart H.265+ duom. taupymas iki 50% |
Procesorius | Industrial embedded micro-processor |
HDMI išvesties raiška | 4K raiška |
VGA išvesties raiška | 1920 × 1080 |
USB kiekis ir klasė | 2vnt. USB 2.0, 2vnt. USB 3.0 |
Aliarminiai įėjimai | 16 |
Reliniai išėjimai | 8 |
Dirbtinis intelektas AI | Yra |
Perimetro apsauga | Yra |
Melagingų pranešimų filtravimas | Yra |
Objektų atpažinimas | Yra |
Veidų atpažinimas | Yra |
Bruožų ir detalių grupavimas | Yra |
Paieška pagal veidą | Yra |
Žmonių skaičiavimas | Yra |
Automobilio indentifikavimas | Yra |
Valstybinių numerių atpažinimas | Yra |
Elektros sanaudos | < 20 W ( su 2 maitinimo šaltiniais ) |
Išmatavimai | 444 mm × 476 mm × 95 mm |
