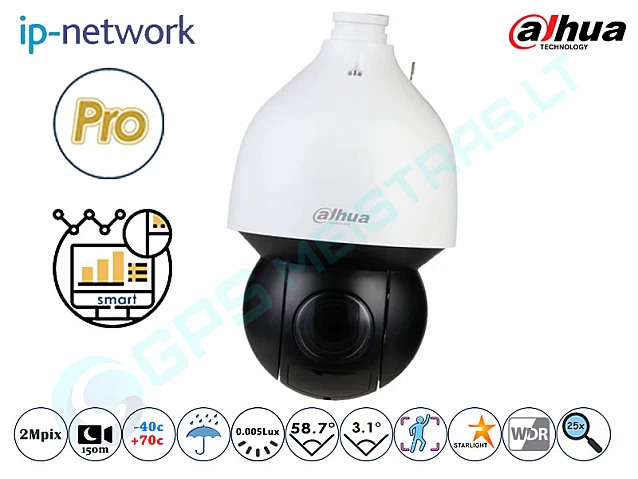

Valdoma IP kamera, 2Mpix raiška, zoom 25x, 5A225X G V2.0

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2MP

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1/3–1/30000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005Lux@F1.6

B/W: 0.0005Lux@F1.6

0Lux (IR light on)

Illumination Distance

150 m (492.13 ft)

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR/Off

Illuminator Number

4

Lens

Focal Length

5.4 mm–135 mm

Max. Aperture

F1.6-F3.5

Field of View

H: 58.7°–3.1°; V: 33.2°–1.7°; D: 67.3°–3.9°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.32 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1655 m (5429.79 ft)

657 m (2155.51 ft)

331 m (1085.96 ft)

166 m (544.62 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360°; Tilt: -15°–+90°

Manual Control Speed

Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Presets

300

Tour

8 (up to 32 preset per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D(Auto recognition)

General Intelligence

Event Trigger

Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

IVS

Object Abandoned/Missing

Artificial Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD PLUS

Support

Auto Tracking

Support

Face Detection

Support

Video

Compression

H.265/H.265+/H.264+/H.264/MJPEG (Sub Stream)

Streaming Capability

3 streams

Resolution

1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1080P/1.3 M/720P (1–50/60 fps)

Sub stream 1: D1/CIF (1–25/30 fps)

Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30 fps)

Bit Rate Control

Variable/Constant

Bit Rate

H.265/H.264: 3 kbps–20480 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Support

WDR

120dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

Audio

Compression

G.711A;G.711Mu;G.726;AAC;MPEG2-Layer2;G.722.1;G.729;G.723

Network

Ethernet

1 RJ-45 Port 10/100Base-T

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (Total bandwidth 64M)

Storage

FTP; Micro SD card (256G); NAS

Browser

IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari

Management Software

Smart Player / Smart PSS / DSS / Easy4ip

Mobile Phone

IOS/Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014

UL:UL60950-1+CAN/CSA C22.2,No.60950-1

Port

Audio Input

1 (LINE IN; bare wire)

Audio Output

1 (LINE OUT; bare wire)

Alarm I/O

2/1

Power

Power Supply

AC24V/3A±25%
POE+

Power Consumption

8W

20W (IR light on)

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤95%RH

Protection

IP67; IK10; TVS 6000V lightning protection; surge protection

Structure

Casing

Metal

Dimensions

Φ190 mm×332 mm (7.48"×13.07“)

Net Weight

4.7 kg (10.36 lb)

Gross Weight

8 kg (17.64 lb)
