Cilindrinė IP trijų objektyvų kamera 5241F V2

Camera

Image Sensor

Channel 1-3: 1/2.8" CMOS

Max. Resolution

Channel 1-3: 1920 (H) × 1080 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1:
0.0007 lux@F1.6 (Color, 30 IRE)
0.0004 lux@F1.6 (B/W,30 IRE)
0 lux (Illuminator on)
Channel 2:
0.004 lux@F2.0 (Color, 30 IRE)
0.0005 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
Channel 3:
0.008 lux@F2.8 (Color, 30 IRE)
0.0008 lux@F2.8 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 100 m (328.08 ft) (IR)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

8 (IR LED)

Angle Adjustment

Triaxial adjustment:
Pan: 0°–360°
Tilt: 0°–70°
Rotation: 0°–360°
Micro PTZ:
Tilt: -5°–10°

Gradienter

The horizontal gradient is visualized, simplifying installation.

Lens

Lens Type

Fixed-focal

Lens Mount

M12

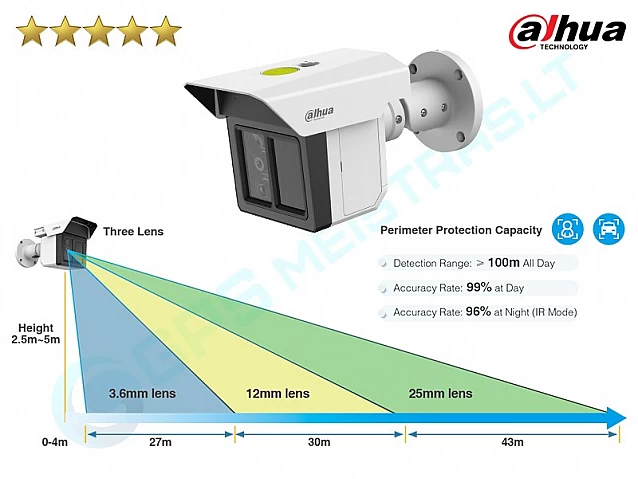

Focal Length

Channel 1: 3.6 mm
Channel 2: 12 mm
Channel 3: 25 mm

Max. Aperture

Channel 1: F1.6
Channel 2: F2.0
Channel 3: F2.8

Field of View

Channel1: D: 100.4°; H: 85.9°; V: 46.7°

Channel2: D: 29.5°; H: 25.7°; V: 14.4°

Channel3: D: 14.9°; H: 13°; V: 7.4°

Iris Control

Channel 1-3: Fixed

Close Focus Distance

Channel 1: 1.1 m (3.61 ft)
Channel 2: 8.6 m (28.22 ft)
Channel 3: 19.6 m (64.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Channel 1

53.7 m

( 176.18 ft)

21.5 m

(70.54 ft)

10.7 m

(35.10 ft)

5.4 m

(17.72 ft)

Channel 2

172.4 m (565.62 ft)

69.0 m

(226.38 ft)

34.5 m

(113.19 ft)

17.2 m

(56.43 ft)

Channel 3

331.0 m (1085.96 ft)

132.4 m

(434.38 ft)

66.2 m

(217.19 ft)

33.1 m

(108.60 ft)

Intelligence

Intelligence Notes

Channel 1–3: Perimeter protection
*Alarms are output through channel 1.

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Video Frame Rate

Channel 1-3:
Main stream: 1920 × 1080@(1–25 fps)
sub stream: 704 × 576@(1–25 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

Channel 1-3: 1080p (1920 × 1080)

Bit Rate Control

VBR;CBR

Video Bit Rate

Channel 1-3:
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Illumination By Area

Yes, 6 areas

Smart Illumination

Yes

Defog

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; security exception; scene changing; audio detection; voltage detection; external alarm

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Interoperability

ONVIF (Profle S & Profle G & Profle T & Profle M); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser

IE: IE 9 and later
Edge: Edge 79 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output

2 channels out: wet contact, 300 mA 12 VDC

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC (±30%); PoE+(802.3at); ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.3 W (12 VDC); 5.5 W (PoE)
Max.: 22.1 W (12 VDC); 23.6 W (PoE) (intelligence on + IR on + speaker on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

278.6 mm × 124.0 mm × 140.4 mm (10.97" × 4.88" × 5.53") (L × W × H)

Net Weight

2.4 kg (5.29 lb)

Gross Weight

3.06 kg (6.75 lb)
