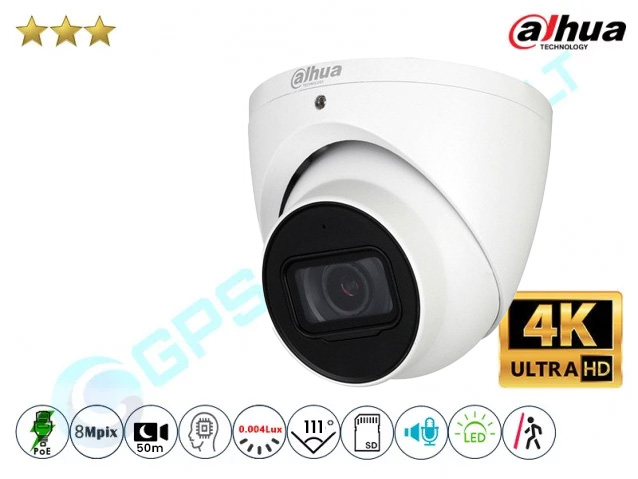

Kupolinė IP kamera 8Mpix raiška, 3852D

Camera

Image Sensor

1/1.8” CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 Lux@F1.4 (Color, 30IRE)

0.0004 Lux@F1.4 (B/W, 30IRE)

0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal 111° ; Vertical 59° ；Diagonal 131°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.8 m (5.9 ft)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

85.4 m4

34.2 m4

17.1 m4

8.5 m

Professional, intelligent

Perimeter Protection

Tripwire; intrusion

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Stream Capability

3 streams

Video Frame Rate

Main stream: 3840× 2160 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps

H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270°(Support 90°/270° with 4M resolution and lower)

Mirror

Yes

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (Support max. 256 G); NAS

Browser

IE: IE8 and later
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12 VDC (±30%)/PoE (802.3af)/ePoE

Power Consumption

Basic power consumption: 3.7W (12V DC); 4.6W (PoE)

Max. power consumption (H.265 + max. stream + intelligent function + IR LED): 6.7W (12 VDC); 7.8W (PoE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F)/Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

99.2 mm × φ106.0 mm

Net Weight

550 g

Gross Weight

700 g
